ICONIC Family



APC SYSTEM


ALL IN ONE
ESU+Vessel Sealing System+Argon Plasma Cut & Coagulation
The line of HF Electrosurgical Units(ESU) equipped with Argon Plasma Cut & Coagulation and Vessel Sealing System is designed as a state-of-the-art product to meet the needs of modern surgery.

Iconic IS410S

Two Channels Monopolar Handle (Disposable)
Dual Pad - Patient Plate (Disposable)
Cable for Patient Plate





Features
» Argon Plasma Coagulation (Continuous Output)
» Argon Plasma Coagulation (Pulsed Output)
» Argon Plasma Cut
» Vessel Sealing (Seal 1)-Permanent sealing up to 7mm
» Vessel Sealing (Seal 2)-Permanent sealing up to 7mm
» Bipolar Cut
» Bipolar Coagulation (Auto-Start Bipolar & Manual Bipolar)
» Monopolar Cut (Pure)
» Monopolar Cut (Blend1)
» Monopolar Cut (Blend2)
» Monopolar Cut (Blend3)
» Monopolar Coagulation (Swift)
» Monopolar Coagulation (Forced)
» Monopolar Coagulation (Spray)
» Monopolar Coagulation (Soft)
» TUR Mode
» Automatic Self Checking (Spotting the system’s internal problems)
» Permanent HF Leakage current control
» Auto Stop Mode for Optimum tissue Coagulation (Preventing tissue Carbonization)
» Utilizing a microprocessor system to control the current in vessel sealing, based on measuring the impedance of the tissue
» Permits two surgeons to coagulate at the same time independently in Spray Mode
» Connect two Monopolar & Bipolar foot switching devices independently
» 75 Programmable memory locations
Technical Details

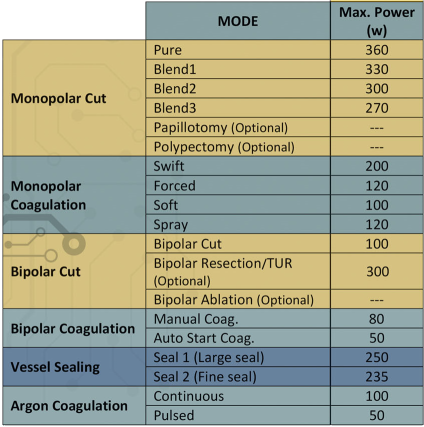

Output Characteristics
Advantages of APC at a glance
List of Standard Accessories
Iconic IS410

Two Channels Monopolar Handle (Disposable)
Dual Pad - Patient Plate (Disposable)
Cable for Patient Plate
Monopolar Electrodes
Dual Channel Footswitches (Monopolar)
Bipolar Footswitch
Bipolar Forceps
Bipolar Cable



Features
» Argon Plasma Coagulation (Continuous Output)
» Argon Plasma Coagulation (Pulsed Output)
» Argon Plasma Cut
» Bipolar Cut
» Bipolar Coagulation (Auto-Start Bipolar & Manual Bipolar)
» Monopolar Cut (Pure)
» Monopolar Cut (Blend1)
» Monopolar Cut (Blend2)
» Monopolar Cut (Blend3)
» Monopolar Coagulation (Swift)
» Monopolar Coagulation (Forced)
» Monopolar Coagulation (Spray)
» Monopolar Coagulation (Soft)
» TUR Mode
» Automatic Self Checking (Spotting the system’s internal problems)
» Permanent HF Leakage current control
» Auto Stop Mode for Optimum tissue Coagulation (Preventing tissue Carbonization)
» Utilizing a microprocessor system to control the current in vessel sealing, based on measuring the impedance of the tissue
» Permits two surgeons to coagulate at the same time independently in Spray Mode
» Connect two Monopolar & Bipolar foot switching devices independently
» 75 Programmable memory locations
Technical Details

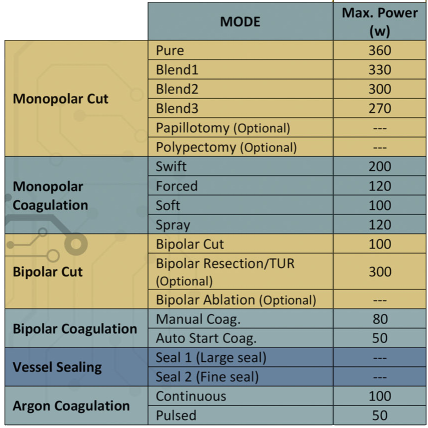

Output Characteristics
Advantages of APC at a glance
List of Standard Accessories
